EPC-1010: High-Performance Embedded Processing Board
TI AM572x Based Single Board PCIe/104 plus Computer
The EPC-1010 board is a high-performance, single-board computer specifically engineered to meet the demanding requirements of aerospace, industrial, and scientific applications. This product exemplifies my work in developing advanced embedded systems, showcasing my capability to handle complex data processing tasks. At its core, the EPC-1010 features the TI AM5728 multi-core SoC, which combines powerful ARM Cortex-A15 processors with C66x DSP cores, providing a versatile platform for high-performance computing. This board integrates a wide range of features and boasts a robust design, highlighting my expertise in hardware and software integration and my ability to overcome challenges in high-performance computing environments.
Technical Overview and Key Features

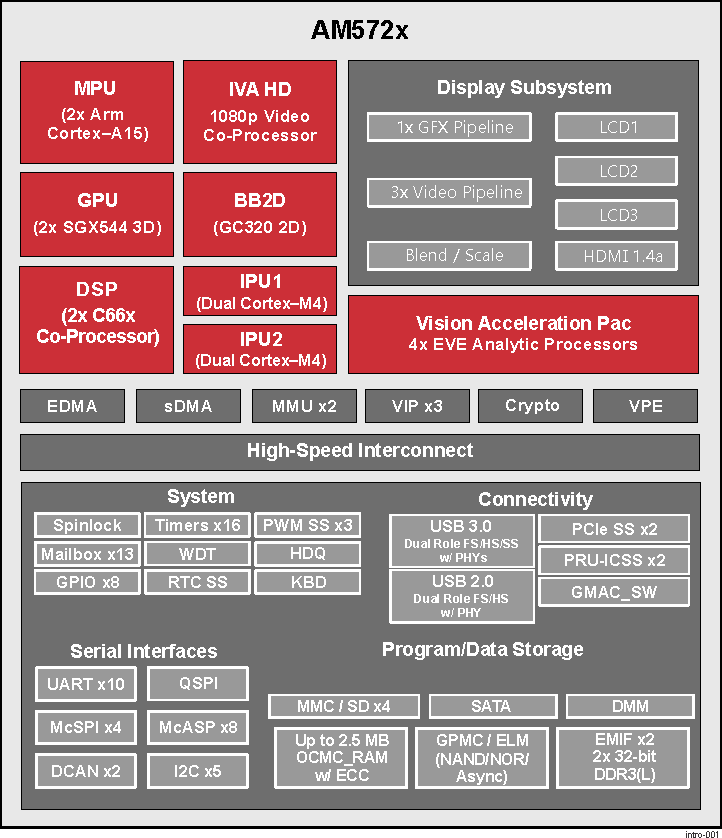

The EPC-1010 board is built around a powerful multi-core ARM+DSP SoC, providing a flexible platform for a wide range of applications. Key technical features include:
- High Processing Power: The board features a multi-core ARM Cortex-A15 processor coupled with C66x DSP cores, delivering exceptional computational power for data-intensive tasks. This architecture supports a range of operating systems, including embedded Linux and TI-RTOS, making it suitable for real-time processing needs.
- Comprehensive Connectivity: Equipped with a variety of interfaces, the EPC-1010 supports Ethernet, USB, PCIe, and other high-speed data buses, ensuring seamless integration into complex systems. The board also includes multiple serial communication options, such as CAN, RS-232, and RS-485.
- Robust Memory Options: The EPC-1010 offers ample memory resources, including high-speed DDR3 RAM and large NAND flash storage, providing sufficient capacity for both volatile and non-volatile data storage needs.
- Graphics and Multimedia Support: The integrated 3D GPU enhances the board’s capability to handle graphical and multimedia processing, making it ideal for applications that require advanced visualization and user interfaces.
Technical Advantages
The EPC-1010 board is designed with a focus on high reliability and durability, essential for applications in harsh environments. Key technical advantages include:
High-Speed and Multi-Layer PCB Design: The board’s multi-layer PCB design ensures optimal signal integrity and power distribution, critical for maintaining performance stability in high-speed applications.
Thermal Management and Ruggedization: With advanced thermal management features and ruggedized components, the EPC-1010 is built to withstand extreme temperature variations and mechanical stresses, ensuring reliable operation in challenging conditions.
Customizability and Scalability: The modular design of the EPC-1010 allows for easy customization and scalability, making it adaptable to a wide range of applications, from small-scale prototypes to full-scale deployment in industrial and aerospace systems.
PCIe/104 and StackPC Standards Compliance: The EPC-1010 features a customized implementation of the PCIe/104 and StackPC standards, enabling seamless integration with a variety of expansion modules and peripherals. This compatibility ensures the board can be easily adapted to meet specific system requirements, enhancing its versatility for complex computing tasks.
Applications and Use Cases
The EPC-1010 board has been successfully utilized in various high-performance computing applications, including:
- Aerospace and Defense: Data acquisition and processing for satellite and launch systems, real-time control and monitoring, and secure communication systems.
- Industrial Automation: Advanced control systems, predictive maintenance, and complex data analytics for manufacturing and production environments.
- Scientific Research: High-precision instrumentation, real-time data analysis, and complex simulation tasks in scientific and engineering research.
